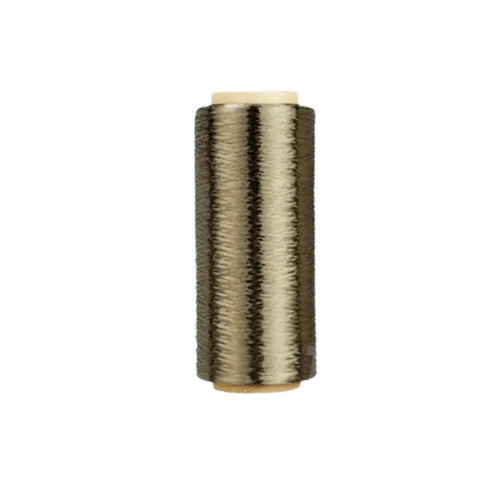

Basalt Fiber Roving: The Next-Generation Reinforcement Material for Demanding Applications

Introduction

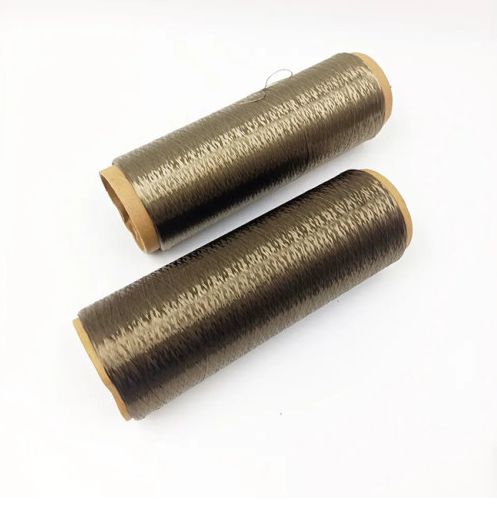

Basalt Fiber Roving represents a breakthrough in high-performance reinforcement materials, engineered from volcanic rock through an advanced melting and extrusion process. This continuous-filament product combines parallel strands without twisting—available as internal unwinding, external unwinding, or direct roving—to deliver unparalleled structural integrity across extreme environments. With a filament diameter range of 11-25 μm and linear densities spanning 100-2400 tex, it serves as the foundational material for next-generation composites.

Technical Specifications

| Parameter | Value Range |
| Filament Diameter | 11 μm - 25 μm | | Linear Density | 100 tex - 2400 tex| | Product Types | Internal Unwinding, External Unwinding, Direct Roving | | Moisture Absorption | <0.1% (ASTM D570) |

Core Advantages Explained

1. Mechanical Superiority

• Tensile Strength: 30% higher than E-glass fibers (4,800-5,500 MPa), enabling lightweight yet load-bearing structures.
• Thermal Resilience: Stable from -260°C to +850°C without degradation, outperforming polymer-based reinforcements.

2. Chemical & Environmental Resistance

• Corrosion Immunity: Resists alkalis, acids, and salts even in marine environments (pH 2-14).
• Zero Magnetic Signature: Critical for EMI-sensitive applications like medical imaging and defense.
• UV Stability: Maintains 98% strength retention after 3,000 hours of accelerated weathering (ISO 4892).

3. Functional Properties

• Electrical Insulation: Volume resistivity >1×10¹² Ω·cm, ideal for high-voltage components.
• Acoustic Performance: 20% better sound damping than mineral wool (ASTM E1050).
• Hydrophobic Nature: <0.1% moisture absorption prevents matrix debonding.

4. Sustainability Profile abundant volcanic rock

• Fully recyclable and non-toxic (REACH/ROHS compliant)

Advanced Application Scenarios

▶ Composite Reinforcement

• Filament Winding: Manufacture of high-pressure vessels (CNG tanks), chemical storage pipes with 2x corrosion resistance vs. steel.
• SMC/BMC: Chopped fibers (3-25mm length) for automotive brake pads-rated electrical enclosures.

▶ Infrastructure Solutions

• Structural Strengthening: CFRP wraps for seismic retrofitting of bridges, increasing load capacity by 40%.
• Geosynthetics: Basalt geogrids with 120 kN/m tensile strength for landslide-prone terrains.

▶ Specialized Textiles

• Fire Curtains: Withstands 1,000°C for >120 minutes (EN 1363-1 certified)
• EMI Shionics compartments

Why Choose Our Basalt Roving?

• Consistent Quality: Laser diameter monitoring during fiber drawing
• Customization: Tailored sizing treatments for epoxy, vinyl ester, or cement matrices
• Supply Chain Reliability: ISO 9001-certified manufacturing with global logistics support

Conclusion

As industries face increasing demands for durable, eco-friendly materials, basalt fiber roving provides a scientifically validated solution that outperforms traditional reinforcements. Its of mechanical robustness, thermal stability, and environmental safety makes it indispensable for mission-critical applications—from offshore energy infrastructure to next-gen transportation.
