Product Introduction:

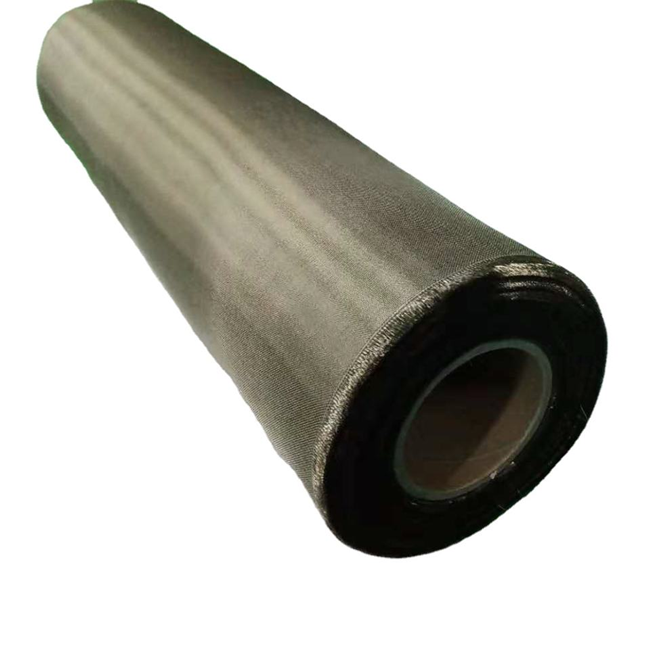

Tri-axial fabrics are a three layer construction fabric, there are two styles in tri-axial one has a fiber orientation of (+45°/90°/-45°) and the other has a fiber orientation of (0°/+45°/-45°). Tri-axial fabrics are used for high strength application and this fabric can be produced with the maximum density of 3000 gsm.
This fabric gives the builder the ability to control the amount of fibre concentration in the areas requiring it. The 0° or 90° fibres add strength across the hull with the 45° fibres adding additional cross bracing and torsional stability.
This three layer fabric has Basfiber® rovings laid down parallel in the - 45°, + 45° and 0° or 90° axis. The 0° or 90° axis generally contains approximately 30 % of the fibre content, but is also available with 50 % of fibre content in this direction. Lightweight stitching holds these fibres together and parallel in each layer. This stitching is non-structural.
Product Features :
-High temperature resistance, corrosion resistance, excellent physical and chemical properties.
-High strenght, small thickness, good flexibility.
-High acid resistance,alkali resistance.
-Strong anti-ultraviolet performance, low moisture absorption, good insulation and good transmission properties.
-Parallel and straightening yarn, excellent mechanical properties.
-More direction mechanical performance can design according to the actual need freedom enhancement effect.
Product Technical Specifications:
Note: The warp and weft density and width of the fabric can be produced according to user requirements.
Storage: It should be stored in a dry and cool place with recommended temperature of 15-35°C and relative humidity of 30-70%. please do not
open the package unless you not use it, avoid moisture.
Product Application:
Used in bridge construction, wind turbine blades, boats, automobiles, sports equipment and other fields.
Packaging Information:
-Requirements for paper spindles:
1:Strenght requirement of paper shaft: capable of carrying 50KG.
2:Both ends of the paper shafe are required: a small hole at oneend and a U-shaped slot at the other end to fix the paper shaft.
-Requirements for plastic bags:
1:Size requirements: length*width: (1500*1500)mm.
2:Strenght requirements: 10s in thickness.
-Carton Requirements:
1:Strenght requirement of cartons: capable of carrying 50KG.
2:Internal size requirement of cartons: length*width*height: 1090*230*230mm
External size requirement of cartons: length*width*height: 1100*235*232mm
-Requirements for paper liners:
Paper liner size requirements: length*width*thickness: 225*225*40mm, medium hole diameter 110mm.
Product delivery date and Shipment:
-Shipment: By sea or by air.(For sample,transport by express)
-Delivery details: 15-20 days after receive the advanced payment.
