Performance and Application introduction of basalt long-fiber reinforced thermoplastic
Performance and Application introduction of basalt long-fiber reinforced thermoplastic
In the modified engineering plastics industry, long-fiber-reinforced thermoplastic refer to composite materials produced by long carbon fiber, long glass fiber, Aramid fiber or basalt fiber and polymer matrix through a series of special modification methods. The biggest Performance of long-fiber composite materials is that they have superior properties that the original materials do not have. Today,we will introduce to you the basalt fiber long fiber reinforced thermoplastic composite material (LFT-B)and its application in the long fiber reinforced thermoplastic composite material (LFT).
1. Introduction of basalt fiber
Continuous Basalt fiber is known as new material of 21st century. Basalt stone as raw materials and crushed the putted into furnace.After melt at 1450-1500℃, the homogeneous melt is first drawn into coarse fibers through the drawing bushing, and then crude fibers are drawn into continuous fibers of various specifications by wire drawing machines, and is infiltrated with different sizing according to different purpose,and processed to form the final products.

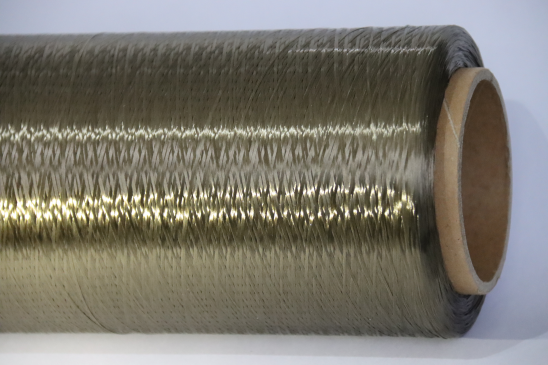

BF direct roving series
2.Performance of BF LFT
Basalt fiber have the Performances of high strength, excellent heat resistance,excellent durability, corrosion resistance, non-absorbent, excellent dielectric performance,radiation protection,excellent wave penetration and absorption performance,moderate price. It’s often used for reinforce thermoplastic composite material. BF LFT products have following performances:
l Under high temperature and long-term low load conditions, no deformation will occur and excellent dimensional stability.
l Fatigue resistance, high temperature resistance, low warping, aging resistance, less fiber exposure, excellent surface performance.
l Small creep performance, small anisotropy, low warping, density is lower than 1.6g/m3
l excellent wave penetration and absorption performance, excellent fluidity, excellent molding performance, can be injection molded or extruded.
l Excellent mechanical properties, especially impact resistance, low water absorption, excellent resistance to seawater and salt spray.
l It maintains its properties at low temperatures and is not degraded by UV and electromagnetic radiation.
3.Application of Basalt Fiber Long Fiber Reinforced LFT Composites
3.1Applications in the automotive field

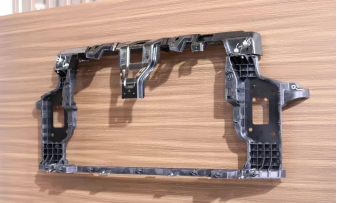

BF LFT composites materials can be used in bumpers, mudguards, engine covers, instrument panel brackets, central armrest brackets, door substrates, front-end modules, intake manifolds, seat backs, and car battery shells in automobiles /bracket, door frame, roof window frame/layer, automotive exterior mirror frame, etc.
Application advantages:
l As an automotive module carrier material, it can not only effectively improve the rigidity, impact strength, creep resistance and dimensional stability of the product, but also make complex automotive module products.
l It has the advantages of light weight, high strength and high modulus, strong impact resistance, high performance and high cost performance.
l It can help the car to achieve lightweight and reduce energy consumption.
l Small creep performance, small anisotropy, low warping deformation.
l Fatigue resistance, high temperature resistance, low warping, Aging resistance, less fiber exposure, excellent surface performance.

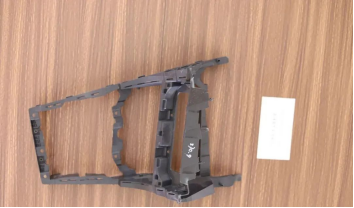

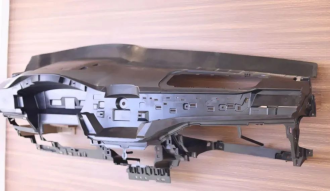

instrument panel brackets center armrest bracket

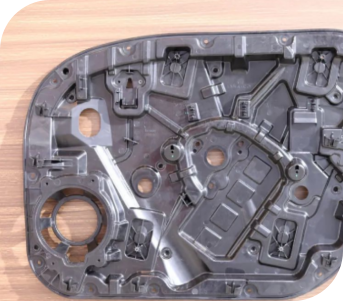

door substrates
3.2 Appliances in Electronic
BF LFT composite materials can be used in various electrical insulation parts, printers, fax machine shells, low-voltage electrical shells and inner brackets, computer outer and inner bracket shells, TV back covers, mobile phone chargers Shell, UHV power transmission various electrical insulation parts, fan blades, electrical switch shell, washing machine inner barrel, washing machine drum, impeller, washing machine triangle bracket, air conditioner guide fan, socket, etc.
Application advantages:
l It has the characteristics of low ignition point and high temperature resistance. Under high temperature and long-term low load conditions, it will not deform and has excellent dimensional stability.
l Excellent wave-transmitting and absorbing properties, which can meet the requirements of electronic and electrical products for electromagnetic wave permeability.
l Excellent electrical insulation, very suitable for the production of electronic and electrical products.
l Excellent fluidity and excellent formability, can be injection molded or extruded, which can not only achieve stable product size, but also avoid waste of materials.
l The density is less than 1.6gkm3, which can achieve light weight, and at the same time, it can achieve the mechanical properties like metal, high impact resistance against external force, light, portable and unbreakable.
l Flame retardant, moisture-proof, sweat-proof and corrosion-proof, strong UV resistance, excellent material stability, not easy to age and fade, long service life, high cost performance.
BF LFT composite materials can be used in bicycle frames, snowboards, tennis rackets, badminton rackets, rowing boats, ground motorcycle pedals, motor boats, etc. in stationery and sports products.
Application advantages:
·Low coefficient of friction, excellent fatigue resistance.
·It has the characteristics of light weight and high strength, which is very suitable for sports equipment.
·excellent fluidity, excellent formability, can be injection molded or extruded, can be designed with a large degree of freedom, and easy to process and shape.
3.3 Appliances in stationery
BF LFT composite materials can be used in bicycle frames, snowboards, tennis rackets, badminton rackets, rowing boats, ground motorcycle pedals, motor boats, etc. in stationery and sports products.
Application advantages:
l Low coefficient of friction, excellent fatigue resistance.
l It has the characteristics of light weight and high strength, which is very suitable for sports equipment.
l Excellent fluidity, excellent formability, can be injection molded or extruded, can be designed with a large degree of freedom, and easy to process and shape.
3.4 Appliances in new infrastructure
BF LFT composite materials can be applied to 5G base station radomes, radomes, new energy vehicle charging piles, etc. in new infrastructure.
Application advantages:
l Excellent wave-transmitting and wave-absorbing performance, which can ensure the electromagnetic wave permeability of 5G radome and radome materials.
l Better safety, with excellent electrical insulation, anti-ultraviolet, anti-oxidation, weather resistance, oil resistance, flame retardant and other characteristics, not only can ensure product safety, but also can greatly improve product life.
l Excellent mechanical properties, especially impact resistance.
l Excellent fluidity and good formability, can be injection molded or extruded, which can not only achieve stable product size, but also avoid waste of materials.
l Lightweight. The density of basalt long fiber reinforced LFT is much lower than that of metal. Under the same design, it can still achieve the same mechanical properties as metal, with high impact resistance to external forces, light and unbreakable.
